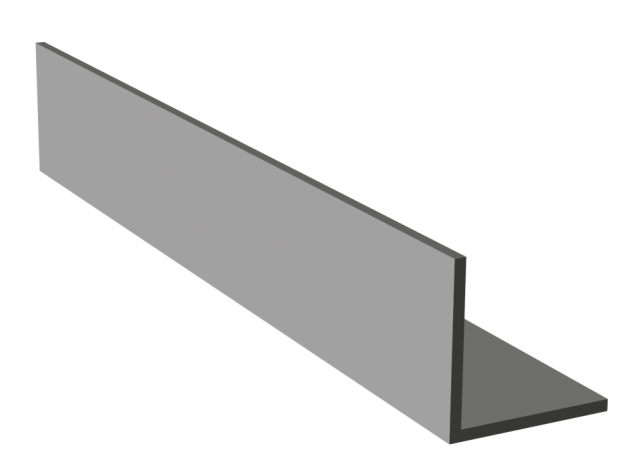

    Corner profile

    Corner profile

    These aluminium finishing profiles are supplied in anodized, enamelled or brute finishes. Alloy EN AW 6060, lengths from 6 metres.

    Item overview

    Click on one of the types below for technical drawings and specifications

    CAD Specification article_header_length article_header_size_a article_header_size_b article_header_thickness
    101005 - - 6000 mm 10 mm 10 mm 1,5 mm
    101010 - - 6000 mm 10 mm 10 mm 2 mm
    101016 - - 6000 mm 15 mm 10 mm 2 mm
    101020 - - 6000 mm 15 mm 15 mm 1,5 mm
    101025 - - 6000 mm 15 mm 15 mm 2 mm
    101035 - - 6000 mm 15 mm 15 mm 3 mm
    101040 - - 6000 mm 20 mm 10 mm 2 mm
    101055 - - 6000 mm 20 mm 15 mm 2 mm
    101060 - - 6000 mm 20 mm 20 mm 1,5 mm
    101065 - - 6000 mm 20 mm 20 mm 2 mm
    101070 - - 6000 mm 20 mm 20 mm 3 mm
    101075 - - 6000 mm 20 mm 20 mm 4 mm
    101080 - - 6000 mm 25 mm 10 mm 2 mm
    101085 - - 6000 mm 25 mm 15 mm 2 mm
    101095 - - 6000 mm 25 mm 20 mm 2 mm
    101097 - - 6000 mm 25 mm 20 mm 3 mm
    101110 - - 6000 mm 25 mm 25 mm 2 mm
    101115 - - 6000 mm 25 mm 25 mm 3 mm
    101116 - - 6000 mm 25 mm 25 mm 3 mm
    101120 - - 6000 mm 25 mm 25 mm 4 mm
    101125 - - 6000 mm 30 mm 10 mm 2 mm
    101130 - - 6000 mm 30 mm 15 mm 2 mm
    101135 - - 6000 mm 30 mm 15 mm 3 mm
    101140 - - 6000 mm 30 mm 20 mm 2 mm
    101145 - - 6000 mm 30 mm 20 mm 3 mm
    101150 - - 6000 mm 30 mm 20 mm 4 mm
    101155 - - 6000 mm 30 mm 25 mm 2 mm
    101157 - - 6000 mm 30 mm 25 mm 3 mm
    101165 - - 6000 mm 30 mm 30 mm 2 mm
    101170 - - 6000 mm 30 mm 30 mm 3 mm
    101175 - - 6000 mm 30 mm 30 mm 4 mm
    101180 - - 6000 mm 30 mm 30 mm 5 mm
    101183 - - 6000 mm 35 mm 15 mm 2 mm
    101185 - - 6000 mm 35 mm 20 mm 2 mm
    101193 - - 6000 mm 35 mm 25 mm 2 mm
    101203 - - 6000 mm 35 mm 35 mm 2 mm
    101205 - - 6000 mm 35 mm 35 mm 3 mm
    101207 - - 6000 mm 35 mm 35 mm 4 mm
    101210 - - 6000 mm 35 mm 35 mm 5 mm
    101220 - - 6000 mm 40 mm 10 mm 2 mm
    101225 - - 6000 mm 40 mm 15 mm 2 mm
    101230 - - 6000 mm 40 mm 20 mm 2 mm
    101235 - - 6000 mm 40 mm 20 mm 3 mm
    101240 - - 6000 mm 40 mm 20 mm 4 mm
    101248 - - 6000 mm 40 mm 25 mm 2 mm
    101250 - - 6000 mm 40 mm 25 mm 3 mm
    101255 - - 6000 mm 40 mm 30 mm 2 mm
    101260 - - 6000 mm 40 mm 30 mm 3 mm
    101262 - - 6000 mm 40 mm 30 mm 4 mm
    101265 - - 6000 mm 40 mm 40 mm 2 mm
    101270 - - 6000 mm 40 mm 40 mm 3 mm
    101275 - - 6000 mm 40 mm 40 mm 4 mm
    101280 - - 6000 mm 40 mm 40 mm 5 mm
    101293 - - 6000 mm 45 mm 45 mm 3 mm
    101294 - - 6000 mm 45 mm 45 mm 5 mm
    101297 - - 6000 mm 50 mm 15 mm 2 mm
    101300 - - 6000 mm 50 mm 20 mm 2 mm
    101301 - - 6000 mm 50 mm 20 mm 2,5 mm
    101302 - - 6000 mm 50 mm 20 mm 3 mm
    101309 - - 6000 mm 50 mm 25 mm 2 mm
    101315 - - 6000 mm 50 mm 25 mm 3 mm
    101316 - - 6000 mm 50 mm 25 mm 4 mm
    101318 - - 6000 mm 50 mm 30 mm 2 mm
    101320 - - 6000 mm 50 mm 30 mm 3 mm
    101325 - - 6000 mm 50 mm 30 mm 4 mm
    101327 - - 6000 mm 50 mm 30 mm 5 mm
    101330 - - 6000 mm 50 mm 40 mm 2 mm
    101335 - - 6000 mm 50 mm 50 mm 2 mm
    101340 - - 6000 mm 50 mm 50 mm 3 mm
    101345 - - 6000 mm 50 mm 50 mm 4 mm
    101350 - - 6000 mm 50 mm 50 mm 5 mm
    101352 - - 6000 mm 50 mm 50 mm 6 mm
    101353 - - 6000 mm 54 mm 20 mm 1,5 mm
    101354 - - 6000 mm 60 mm 10 mm 2 mm
    101355 - - 6000 mm 60 mm 15 mm 2 mm
    101356 - - 6000 mm 60 mm 20 mm 2 mm
    101358 - - 6000 mm 60 mm 20 mm 3 mm
    101360 - - 6000 mm 60 mm 25 mm 2 mm
    101362 - - 6000 mm 60 mm 25 mm 3 mm
    101363 - - 6000 mm 60 mm 30 mm 2 mm
    101365 - - 6000 mm 60 mm 30 mm 3 mm
    101367 - - 6000 mm 60 mm 30 mm 4 mm
    101372 - - 6000 mm 60 mm 40 mm 2 mm
    101374 - - 6000 mm 60 mm 40 mm 3 mm
    101375 - - 6000 mm 60 mm 40 mm 4 mm
    101377 - - 6000 mm 60 mm 40 mm 5 mm
    101380 - - 6000 mm 60 mm 60 mm 2 mm
    101385 - - 6000 mm 60 mm 60 mm 3 mm
    101388 - - 6000 mm 60 mm 60 mm 4 mm
    101390 - - 6000 mm 60 mm 60 mm 5 mm
    101400 - - 6000 mm 60 mm 60 mm 6 mm
    101402 - - 6000 mm 62 mm 17 mm 2 mm
    101403 - - 6000 mm 70 mm 20 mm 2 mm
    101406 - - 6000 mm 70 mm 25 mm 2,5 mm
    101407 - - 6000 mm 70 mm 30 mm 2 mm
    101408 - - 6000 mm 70 mm 40 mm 2 mm
    101409 - - 6000 mm 70 mm 70 mm 3 mm
    101410 - - 6000 mm 70 mm 70 mm 7 mm
    101413 - - 6000 mm 75 mm 40 mm 3 mm
    101415 - - 6000 mm 75 mm 50 mm 5 mm
    101416 - - 6000 mm 75 mm 50 mm 6 mm
    101418 - - 6000 mm 80 mm 15 mm 2 mm
    101419 - - 6000 mm 80 mm 20 mm 2 mm
    101421 - - 6000 mm 80 mm 30 mm 3 mm
    101425 - - 6000 mm 80 mm 40 mm 3 mm
    101430 - - 6000 mm 80 mm 40 mm 4 mm
    101437 - - 6000 mm 80 mm 50 mm 6 mm
    101446 - - 6000 mm 80 mm 80 mm 3 mm
    101449 - - 6000 mm 80 mm 80 mm 5 mm
    101452 - - 6000 mm 80 mm 80 mm 8 mm
    101456 - - 6000 mm 90 mm 40 mm 2 mm
    101462 - - 6000 mm 100 mm 20 mm 2 mm
    101465 - - 6000 mm 100 mm 30 mm 3 mm
    101467 - - 6000 mm 100 mm 40 mm 4 mm
    101475 - - 6000 mm 100 mm 50 mm 3 mm
    101480 - - 6000 mm 100 mm 50 mm 5 mm
    101486 - - 6000 mm 100 mm 64 mm 8 mm
    101490 - - 6000 mm 100 mm 100 mm 10 mm
    101492 - - 6000 mm 120 mm 80 mm 10 mm
    101496 - - 6000 mm 150 mm 75 mm 8 mm

    View our product warranty terms here

    Do you need help in making the right choice? Ask one of our specialists

    Contact us or request price quotation directly.
