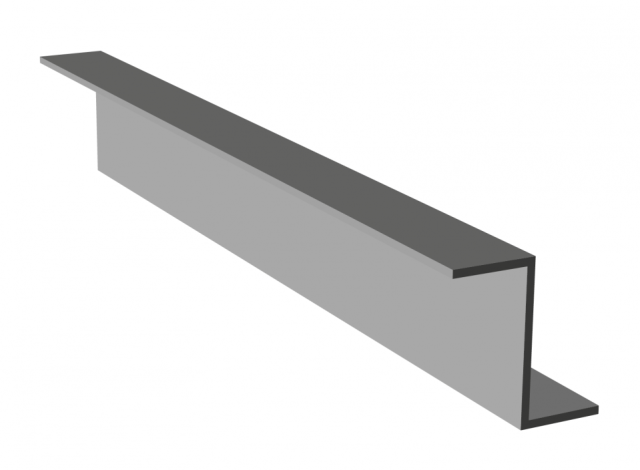

    Z-section

    Z-section

    These aluminium finishing profiles are supplied in anodized, enamelled or brute finishes. Alloy EN AW 6060, lengths from 6 metres.

    Item overview

    Click on one of the types below for technical drawings and specifications

    CAD Specification Size A Size B Size C Size D

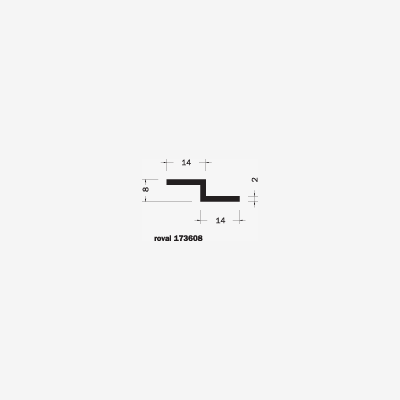

    173608 173608 173608 173608 CAD - 14 mm 8 mm 14 mm 2 mm

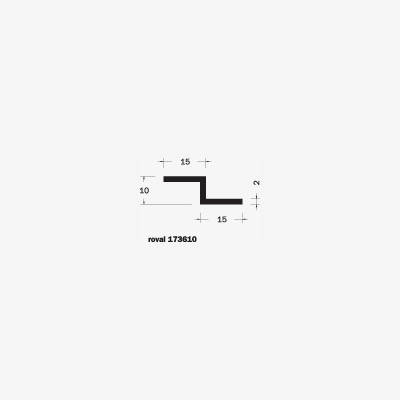

    173610 173610 173610 173610 CAD - 15 mm 10 mm 15 mm 2 mm

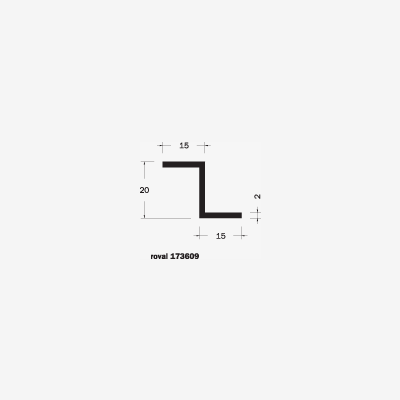

    173609 173609 173609 173609 CAD - 15 mm 20 mm 15 mm 2 mm

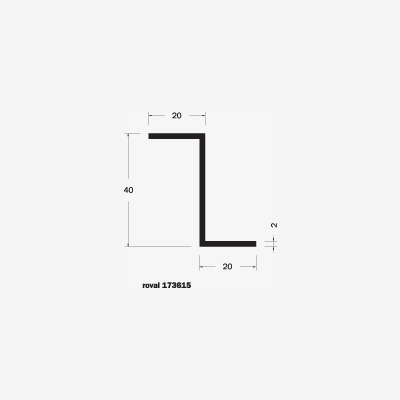

    173615 173615 173615 173615 CAD - 20 mm 40 mm 20 mm 2 mm

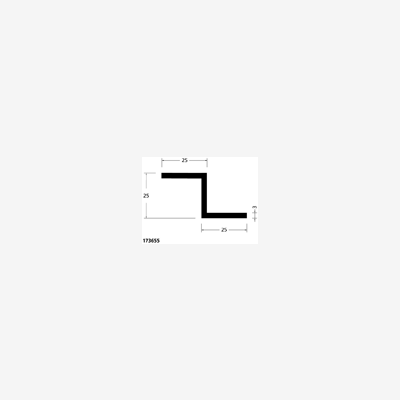

    173655 173655 173655 173655 CAD - 25 mm 25 mm 25 mm 3 mm
    173625 - -
