Roval-Rococo®

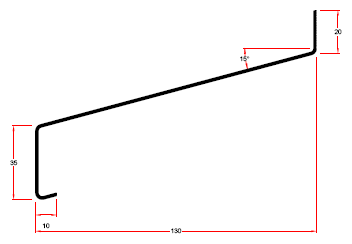

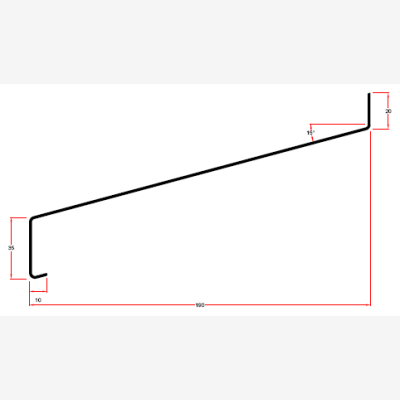

Standard sill with rounded sides. Frontal view is 35 mm. The coupling plates are placed on the underside of the sill. Also suitable for use with outside wall insulation. Non-standard sizes are also possible.
Available:
- including screw (slotted) holes
- including (welded) bulkheads
- welded mitred corners
- protective film
- sound-damping insulation
- brute, anodized or enamelled versions
- drainage angle of 15º
Item overview
Click on one of the types below for technical drawings and specifications
| CAD | Specification | Size A | Gradient | Width | Width | ||
|---|---|---|---|---|---|---|---|
|
410055
|
- | 55 mm | 15 degrees | mm | mm | |
|

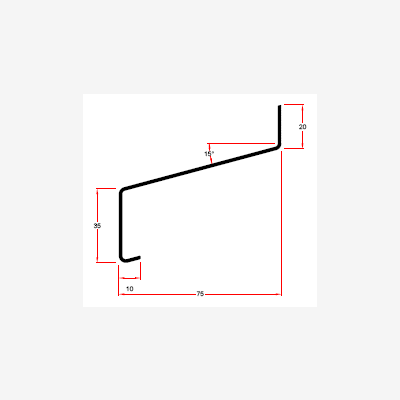

410075
|
- | 75 mm | 15 degrees | mm | mm | |
|
410090
|
- | 90 mm | 15 degrees | mm | mm | |
|

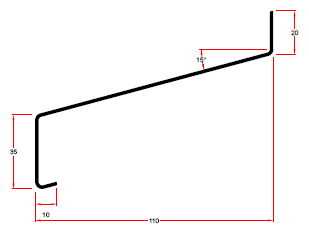

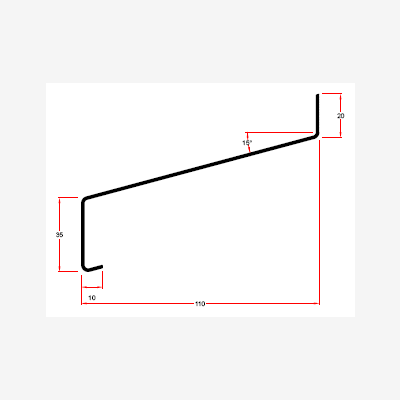

410110
|
- | 110 mm | 15 degrees | mm | mm | |
|

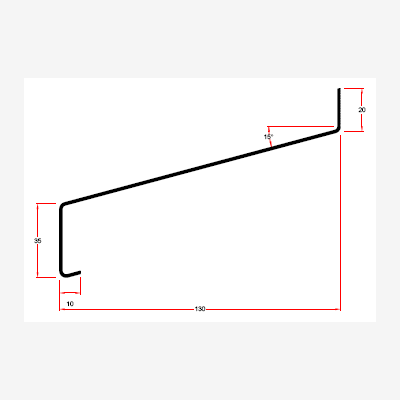

410130
|
- | 130 mm | 15 degrees | mm | mm | |
|

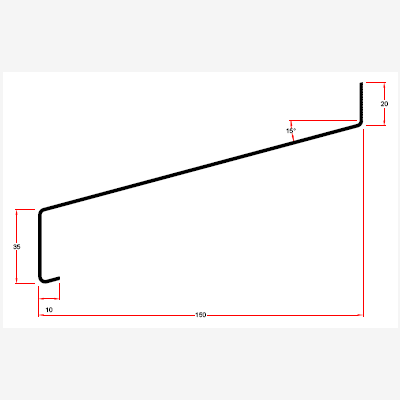

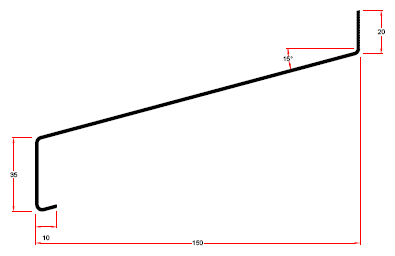

410150
|
- | 150 mm | 15 degrees | mm | mm | |
|

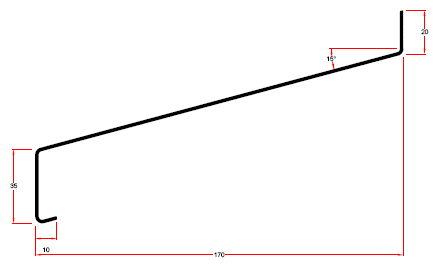

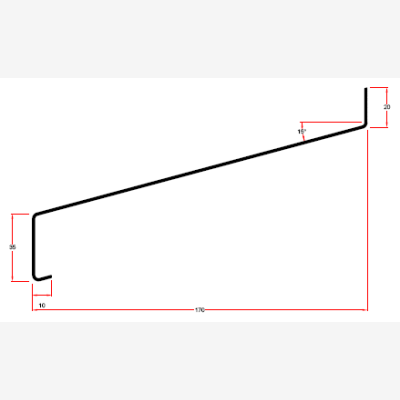

410170
|
- | 170 mm | 15 degrees | mm | mm | |
|
410190
|
- | 190 mm | 15 degrees | mm | mm | |
View our product warranty terms here
Components:
Bulkheads
- Bulkheads various types
Drain pieces for bulkheads type F, G and H
- A spring for clamping
- B drain piece
- C bulkhead
Coupling plate type 5
- Internal
- A coupling head
- B coupling plate including rubber
Coupling plate type 1
- External
Welded mitred corners
- For internal and external angles
- Weld seams not ground off
Anchor type IV
- 100 x 30 mm
Anchor type V
- Optional dimensions for outside wall insulation
Rubber seal
(Roval 152010)
- For sealing the back of sills
Do you need help in making the right choice? Ask one of our specialists
Contact us or request price quotation directly.
